20 KN Electrodynamic Shaker System With 500x500mm Vertical And Horizontal Vibration Table

Brand Name : PRECISION

Model Number : VTS-20

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : $6000

Payment Terms : T/T

Supply Ability : 100/month

Delivery Time : 15 working days

Packaging Details : Standard export packaging

Customized support : OEM ODM

Sine force : 20kN

Random force : 20kN

Shock force : 40kN

Frequency range : 1-3000Hz

Displacement : 51mm

Velocity : 2.0

Table size : 500x500mm

Contact Now

20 kN Electrodynamic Shaker System With 500x500mm Vertical and Horizontal Vibration Table

Our 20 kN Electrodynamic Shaker System is a high-performance, versatile solution designed for comprehensive vibration testing. Equipped with a robust 500x500mm combined vertical and horizontal test table, this system provides exceptional flexibility for evaluating the durability and performance of a wide range of products. Ideal for industries requiring precise and efficient vibration analysis, it allows for both vertical (Z-axis) and horizontal (X/Y-axis) testing without re-fixturing, significantly streamlining your testing processes and ensuring product robustness.

Key Features

  • 20 kN Force Rating: Delivers substantial force for rigorous testing of medium to large components and assemblies.

  • Integrated 500x500mm Test Table: Features a spacious, combined test table for both vertical (Z-axis) and horizontal (X & Y-axis) vibration testing, maximizing efficiency.

  • Vertical & Horizontal Testing: Conduct tests in multiple orientations on a single system, eliminating the need for separate equipment or time-consuming re-mounting.

  • Precise Electrodynamic Technology: Ensures accurate and repeatable generation of complex vibration profiles including sine, random, shock, and mixed-mode tests.

  • Wide Frequency Range: Capable of simulating a broad spectrum of vibrational environments encountered in real-world applications.

  • Advanced Digital Control System: Provides precise control over frequency, amplitude, and acceleration, allowing for accurate replication of specified test conditions.

  • Comprehensive Data Acquisition: Integrated systems for real-time monitoring, recording, and analysis of critical test parameters for detailed insights.

  • Robust & Durable Construction: Built with industrial-grade components for continuous operation and long-term reliability in demanding testing environments.

  • Customizable Fixturing: Our engineering team can design and manufacture application-specific fixtures to securely mount diverse test articles to the shaker and table.

Applications

  • Automotive Components: Testing sub-assemblies, electronic control units (ECUs), and battery modules for vehicle durability.

  • Electronics & Telecommunications: Reliability assessment of large electronic enclosures, servers, and communication equipment.

  • Aerospace & Defense: Qualification of avionics, structural components, and payload systems.

  • Packaging: Rigorous evaluation of packaged goods and transit containers.

  • Consumer Goods: Durability testing for appliances, furniture, and other products.

  • Research & Development: Material characterization, structural dynamics analysis, and new product validation.

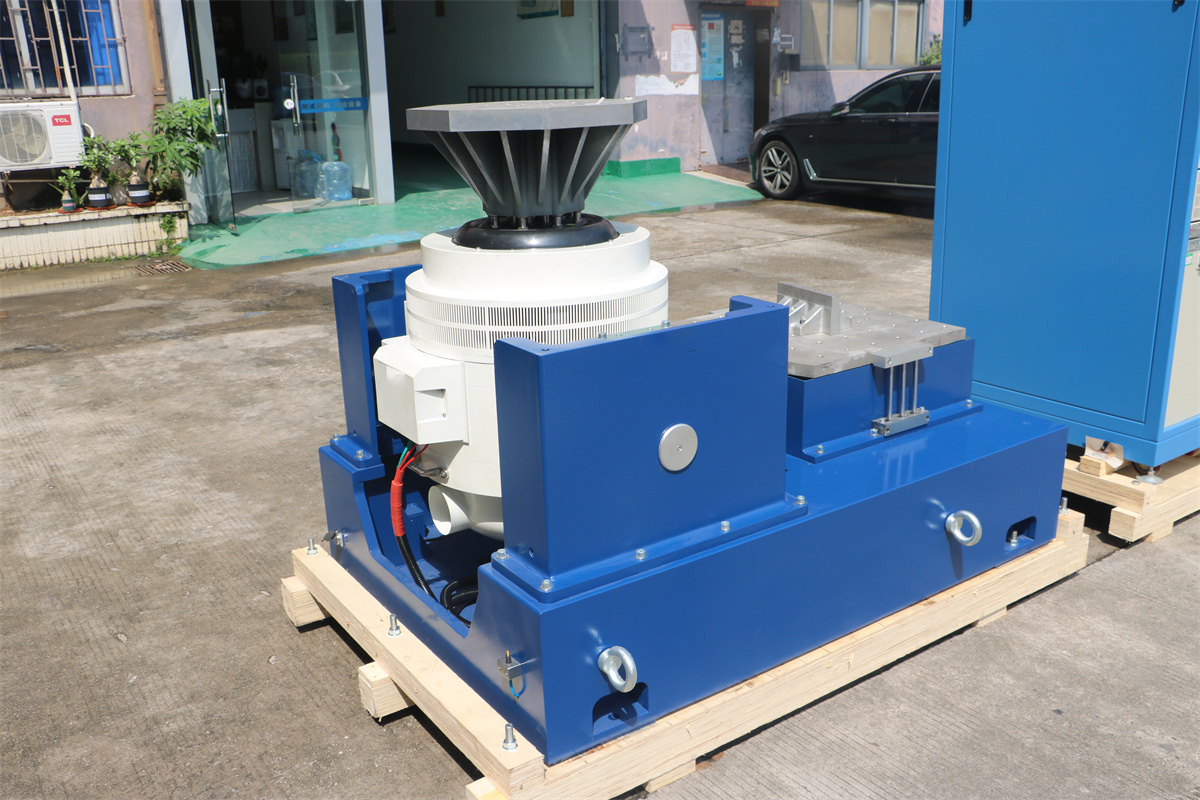

20 KN Electrodynamic Shaker System With 500x500mm Vertical And Horizontal Vibration Table20 KN Electrodynamic Shaker System With 500x500mm Vertical And Horizontal Vibration Table

Benefits

  • Versatile Testing: Conduct both vertical and horizontal tests on a single platform, enhancing testing capabilities.

  • Increased Efficiency: The combined table eliminates re-fixturing, significantly reducing test setup time and improving throughput.

  • Reliable Performance: Electrodynamic technology ensures consistent, accurate, and repeatable test results.

  • Enhanced Product Quality: Helps identify design flaws, predict fatigue life, and ensures products meet stringent durability standards.

  • Cost-Effective Solution: A single system for multi-directional testing reduces equipment investment and operational costs.

Technical Specifications:

Sine(peak) 2000kg.f / 20kN Maximum payload 400kg
Random(rms) 2000kg.f / 20kN Vibration Isolation Frequency 2.5Hz
Shock(peak) 4000kg.f / 40kN Armature diameter Ф340mm
Frequency 1~2800Hz Armature mass 30kg
Displacement(p-p) 100mm Armature table 25×M10
Maximum velocity 1.8m/s Maximum acceleration 65g
weight(kg) About 1700 DimensionL×W×H 1160×880×1050mm
Material Magnesium alloy Upper limit frequency of use(Hz) 500Hz
Dimension(mm) 1200 x 1200 weight(kg) 135kg
Blower power 7.5kW Blower flow rate 0.65m³/s
Air pressure O.O26Kgl/cm3 Weight 180kg

Looking to enhance your product's reliability with a powerful and flexible vibration testing solution? Contact our experts today to discuss how our 20 kN Electrodynamic Shaker System with a 500x500mm Vertical and Horizontal Table can meet your specific testing requirements.
